PTT 2985
Loading...

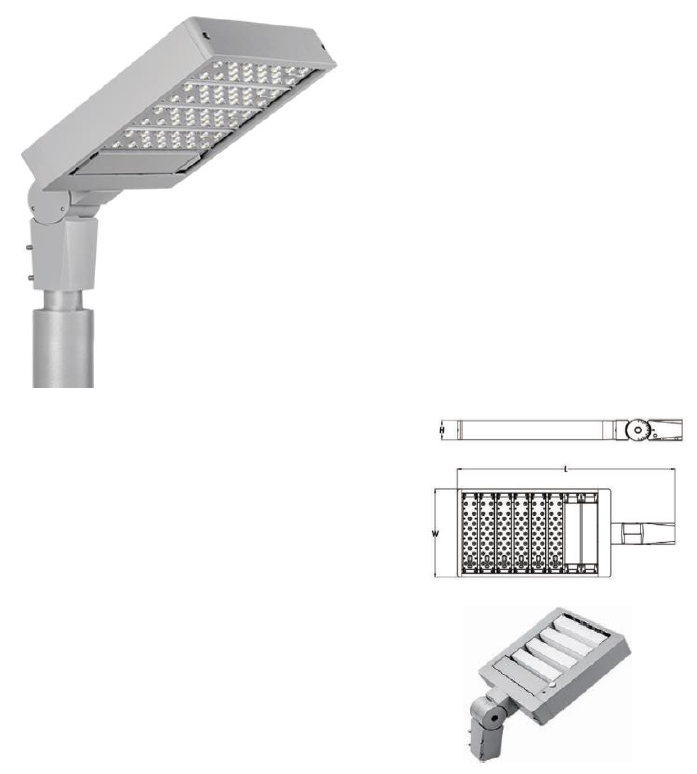

The body made of die-cast aluminium and ADJUSTABLE spigot mounting
LED powered by Nichia
Beam angle : 10°, 25°, 40°, 60°, 90°, 120° & Asymmetrical
Dimensions : A – 465(L) x 330X(W) x 70(H)
: B – 525(L) x 330X(W) x 70(H)
: C – 585(L) x 330X(W) x 70(H)
: D – 705(L) x 330X(W) x 70(H)
: E – 765(L) x 330X(W) x 70(H)
: F – 825(L) x 330X(W) x 70(H)
: G – 885(L) x 330X(W) x 70(H)
Input voltage : AC120 – 277V
Colour temperature : 3000k; 4000k & 5000
Protection class : IP67
Product Specifications
| Code | Lamp | Wattage | Lumens | Colour Temp. |
| PTT 2985.60.3k/4k/5k(A) | LED | 60w | 7247 ~ 8052lm | 3000 ~ 5000k |
| PTT 2985.80.3k/4k/5k(A) | LED | 80w | 8996 ~ 9984lm | 3000 ~ 5000k |
| PTT 2985.90.3k/4k/5k(B) | LED | 90w | 10571 ~ 11745lm | 3000 ~ 5000k |
| PTT 2985.120.3k/4k/5k(B) | LED | 120w | 13806 ~ 15340lm | 3000 ~ 5000k |
| PTT 2985.160.3k/4k/5k(C) | LED | 160w | 18252 ~ 20280lm | 3000 ~ 5000k |
| PTT 2985.200.3k/4k/5k(D) | LED | 200w | 22932 ~ 25480lm | 3000 ~ 5000k |
| PTT 2985.240.3k/4k/5k(E) | LED | 240w | 27378 ~ 30420lm | 3000 ~ 5000k |
| PTT 2985.280.3k/4k/5k(F) | LED | 280w | 32058 ~ 35620lm | 3000 ~ 5000k |
| PTT 2985.320.3k/4k/5k(G) | LED | 320w | 36720 ~ 40300lm | 3000 ~ 5000k |
