PTM 2956
Loading...

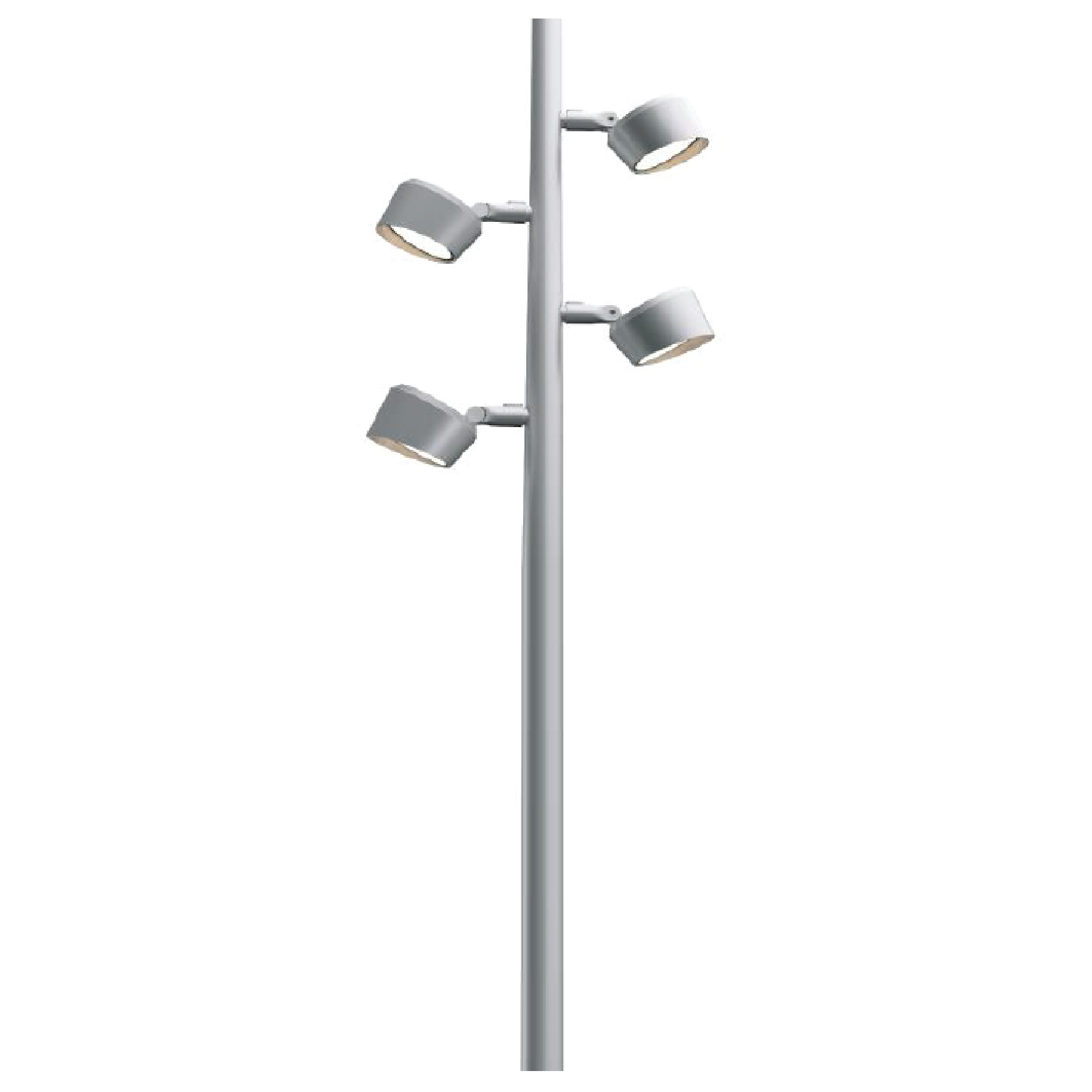

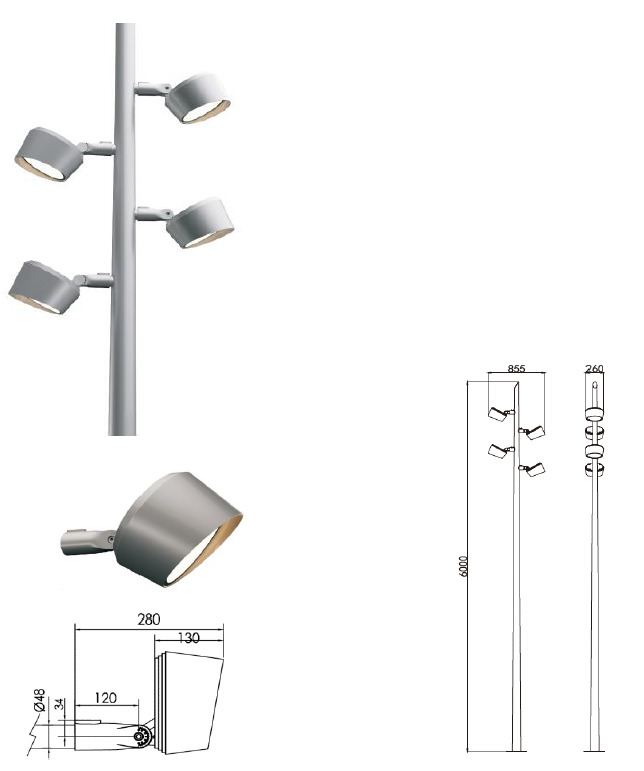

Die-cast aluminium housing light fitting and hot dipped galvanized mild steel pole
Beam angle : 2.6°, 3.5°, 12°, 20°, 30°, 60°, 10×70° & 5×20°
RGB : 5°, 10°, 12.5° & 15×60°
RGBW : 15°,20°, 30° & 15×60°
Colour temperature : 3000k, 4000k, 5000k, RGB & RGBW
Input voltage : AC100 – 305V (Single)
: DC36v (RGB & RGBW)
Protection class : IP65
Product Specifications
| Code | Lamp | Wattage | Lumens | Pole Height |
| PTM 2956.70.3k/4k/5k | LED | 2 x 35w | 2 x 3220 ~ 2 x 3542lm | 3.0 ~ 4.0m |
| PTM 2956.140.3k/4k/5k | LED | 4 x 35w | 4 x 3220 ~ 4 x 3542lm | 3.0 ~ 4.0m |
| PTM 2956.90.3k/4k/5k | LED | 2 x 45w | 2 x 4950 ~ 2 x 5445lm | 5.0 ~ 6.0m |
| PTM 2956.180.3k/4k/5k | LED | 4 x 45w | 4 x 3542 ~ 4 x 5445lm | 5.0 ~ 6.0m |
