PTM 2936
Loading...

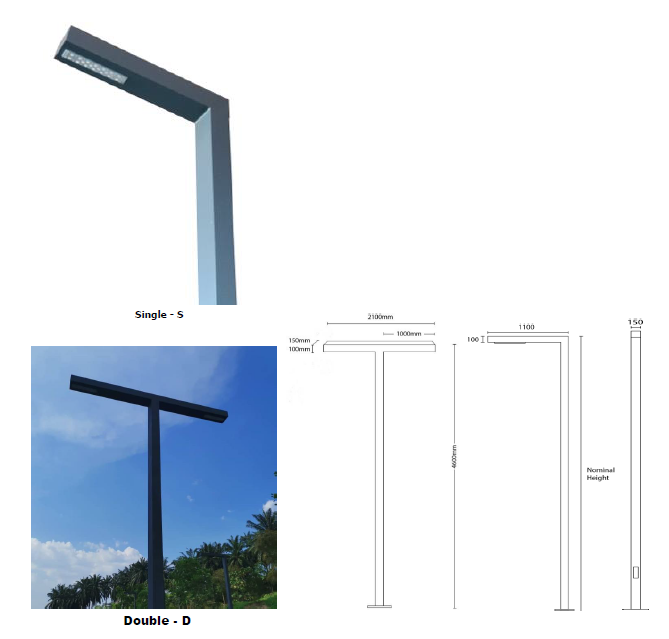

The lantern and pole made rectangular extruded aluminium
PC optical lens
Beam angle available : 40°, 60°, 90°, 120°, 150° & Asymmetrical beam
Colour temperature : 3000k, 4000k & 5000k
Protection class : IP65
Product Specifications
| Code | Lamp | Wattage | Lumens | Pole Height |
| PTM 2936.30.3k/4k/5k.S | LED | 30w | 3627 ~ 4030lm | 4.0m |
| PTM 2936.60.3k/4k/5k.D | LED | 2 x 30w | 2 x 3627 ~ 2 x 4030lm | 4.0m |
| PTM 2936.40.3k/4k/5k.S | LED | 40w | 4613 ~ 5125lm | 4.5m |
| PTM 2936.80.3k/4k/5k.D | LED | 2 x 40w | 2 x 4613 ~ 2 x 5125lm | 4.5m |
| PTM 2936.60.3k/4k/5k.S | LED | 60w | 7247 ~ 8052lm | 6.0m |
| PTM 2936.120.3k/4k/5k.D | LED | 2 x 60w | 2 x 7247 ~ 2 x 8052lm | 6.0m |
