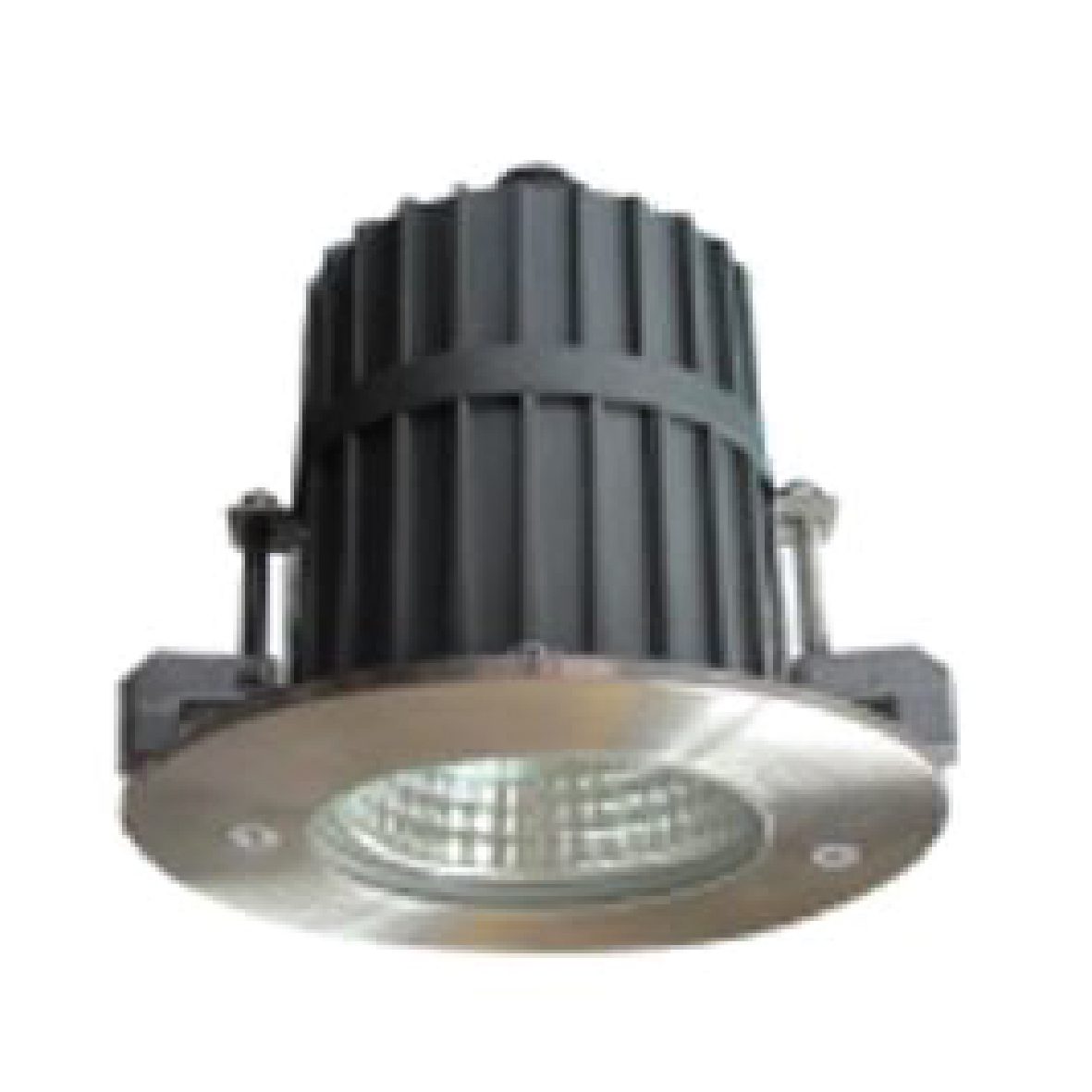

The body made of die-cast aluminium & stainless steel ring
Toughened clear tempered glass
Input voltage : AC100 – 240v
Colour temperature : 3000k, 4000k & 5000k

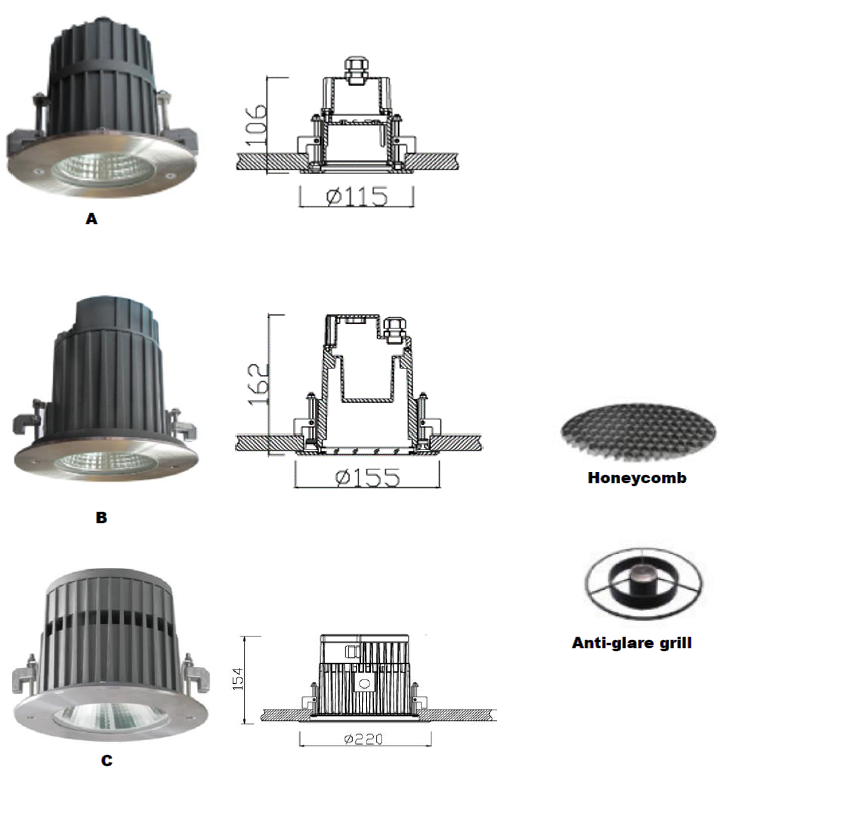

Beam angle : 8°,17°, 38° & 60° (A)
: 8°,18°, 36° & 60° (B)
: 8°,15°, 30° & 50° (C)
Class protection : IP65
Product Specifications
Code | Lamp | Wattage | Lumens | Colour Temp. |
DL 11230.7.5.3k/4k/5k(A) | COB LED | 7.5w | 765 ~ 826lm | 3000 ~ 5000k |
DL 11230.10.8.3k/4k/5k(B) | COB LED | 10.8w | 1088 ~ 1206lm | 3000 ~ 5000k |
DL 11230.25.3k/4k/5k(C) | COB LED | 25w | 2470 ~ 2717lm | 3000 ~ 5000k |
